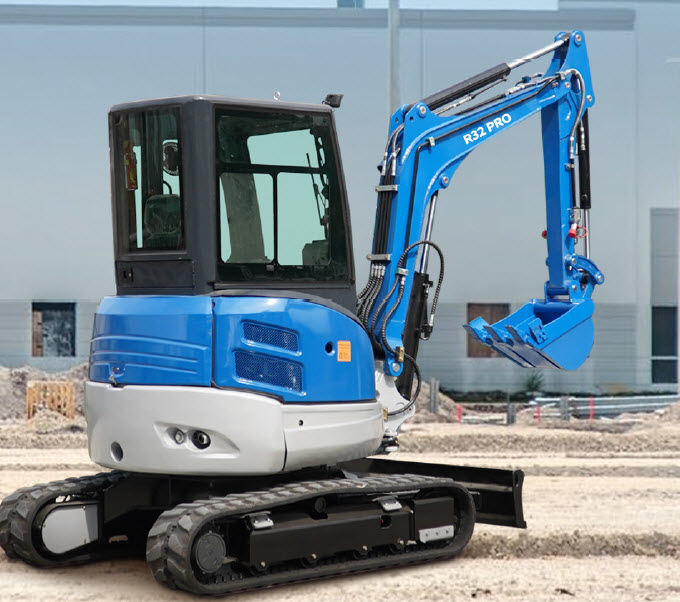

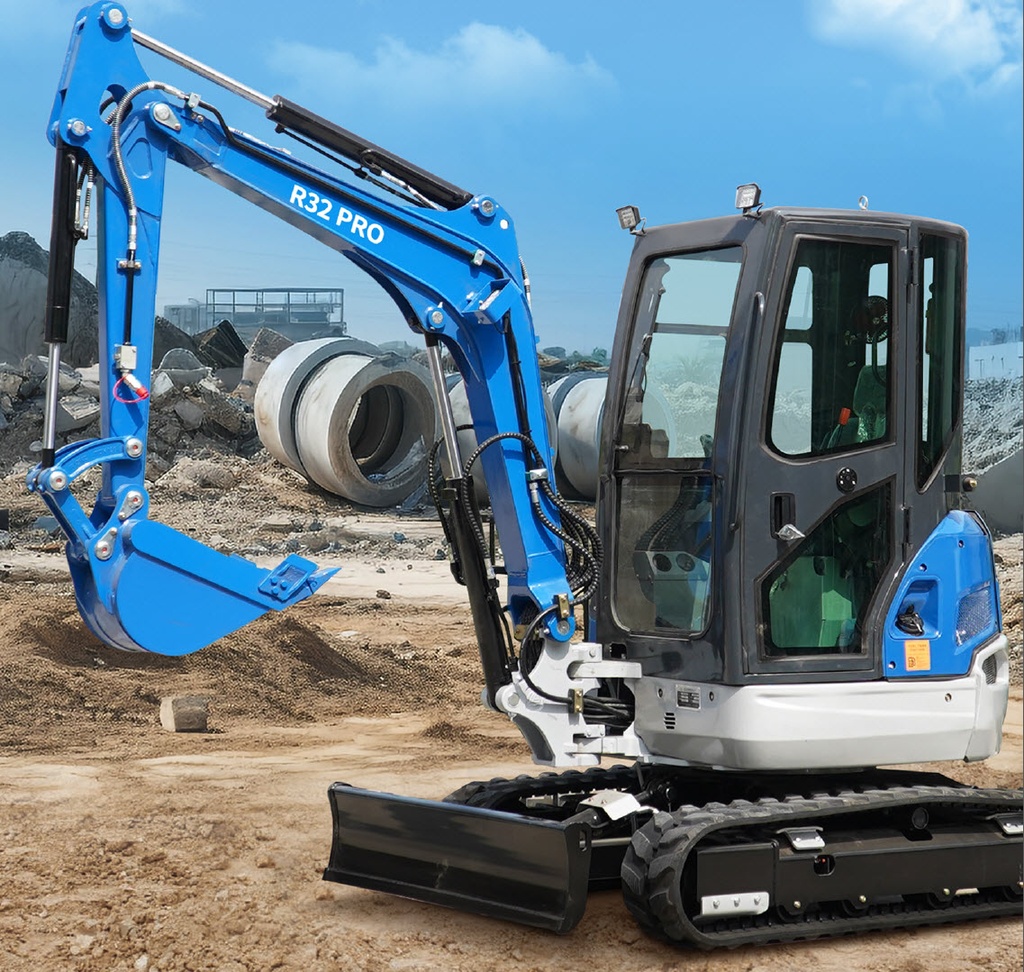

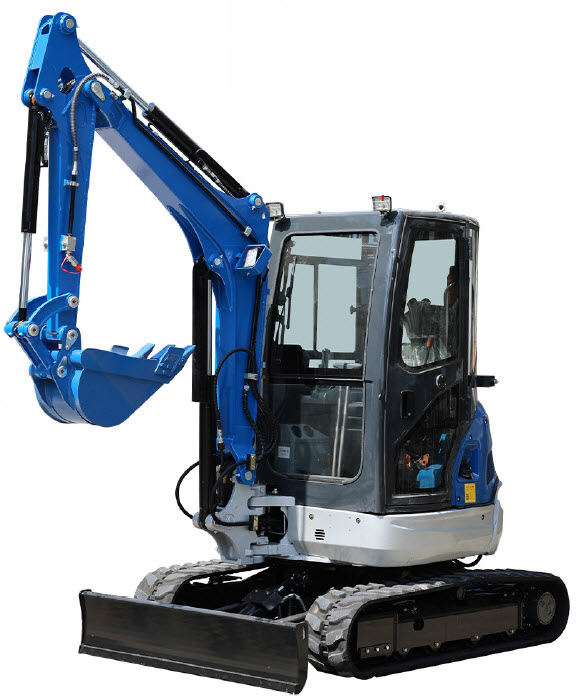

RIPPA R32-2 PRO
3.2 tons mini-excavator
Kubota V1505 Diesel Engine
Automatic glow plug management
Intelligent Idling control
Load Sensing Hydraulic
Top Speed
LKC LTM03 Planetary final drive
Trusted by Leading Brands: The fact that leading brands like Komatsu, Hitachi and Kubota trust the LKC LTM03 for their machinery speaks volumes about its quality and durability. By choosing equipment that uses this final drive, you're aligning with industry standards and ensuring long-term operational success.
Kubota U17/Bobcat E20/Hitachi ZX17U
Yanmar VIO17/Takeuchi TB216/Komatsu PC18
Katayama-type track frame
The Katayama Type track frame is constructed from high-strength steel, providing superior resistance to wear and tear and ensuring long-lasting durability in harsh working conditions. Its optimized tread design enhances traction and minimizes ground pressure, allowing for smoother operation and more efficient digging. Additionally, the track frame's design minimizes wear on critical components, leading to an extended service life and reduced maintenance needs, making it an ideal solution for heavy-duty applications.
KUBOTA Engine
Kubota diesel engine brings powerful performance and excellent working ability with its excellent design. It also has the advantages of low fuel consumption, low vibration and low noise. Kubota provide a 2 years \ 2000 Hours warranty.
Intelligent Idle control
When the control are not used, the engine idles after 4 seconds. Moving the lever again immediately restores the engine to its original speed. This feature can reduce fuel consumption by up to 10% and decrease noise, making it ideal for work in urban areas.
Load-Sensing Hydraulic pump
Load-sensing hydraulic pumps significantly enhance excavator performance by improving fuel efficiency and responsiveness. By adjusting flow and pressure based on actual load requirements, they reduce energy consumption and heat generation, leading to lower operating costs. This precision allows for smoother control, enabling faster and more accurate task execution. Additionally, reduced hydraulic stress increases component reliability and longevity, resulting in fewer breakdowns and maintenance needs. Overall, load-sensing technology boosts productivity while ensuring quieter and more adaptable operation.
Automatic glow plug
Automatic glow plug management senses water temperature and optimizes glow plug activation time, ensuring efficient usage based on engine conditions.
Specifications
| Engine | |
|---|---|
| Engine type | Water-Cooled Diesel |
| Engine Manufacturer | Kubota |
| Engine Model | V1505 |
| Maximum torque - (Nm (lb-ft) / rpm) | 92.6 (68.3) / 1700 |
| Maximum Rated output - (kW (HP) / rpm) | 18.5 (24.8) / 2300 |
| Configuration | |
|---|---|

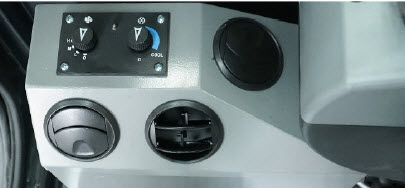

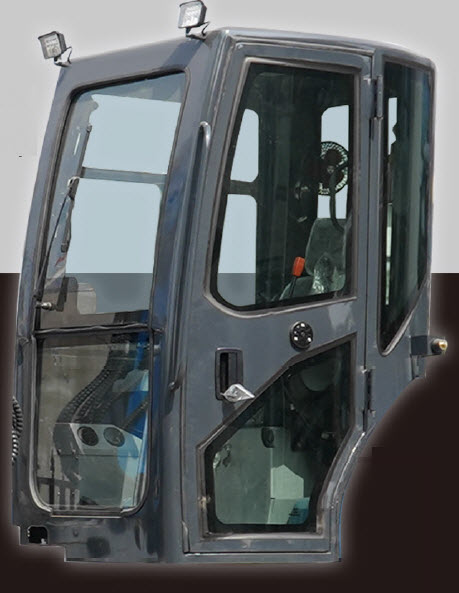

| Cab | with cab (ac\heating) |
| Main Caracteristics | |
|---|---|
| Track type | Rubber |
| Locking hydraulic functions | Yes |
| Operating weight (kg) | 3171 |
| Final Drive type | Hydraulic final drive gearbox |
| Travel speed in high mode (km/h) | 0 - 3 |
| Travel speed in Low mode (km/h) | 0 - 1.8 |
| Auxiliary Hydraulics on arm | Standard |
| Auxiliary output - Quick connect | Standard |

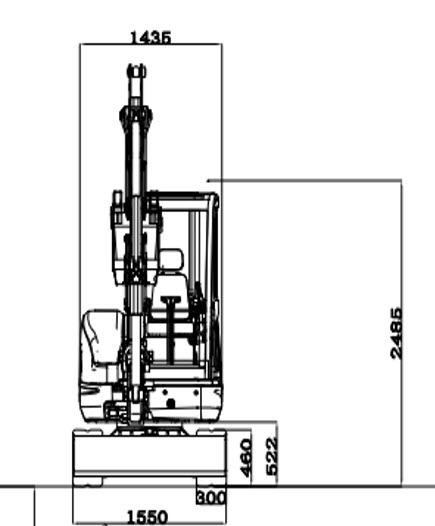

| Dimensions | |
|---|---|
| Overall height (mm/in.) | 2485 (98) |
| Transportation width (mm/in.) | 1550 (61) |
| Transportation length (mm/in.) | 2921 (115) |
| Track width when retracted (mm/in.) | N/A |
| Track width when extended (mm/in.) | 1550 / 61 |
| Track undercarriage length (mm/in.) | 2025 / 80 |
| Track center sprocket idler distance (mm/in.) | 1600 / 63 |
| Track undercarriage height (mm/in.) | 460 /18 |

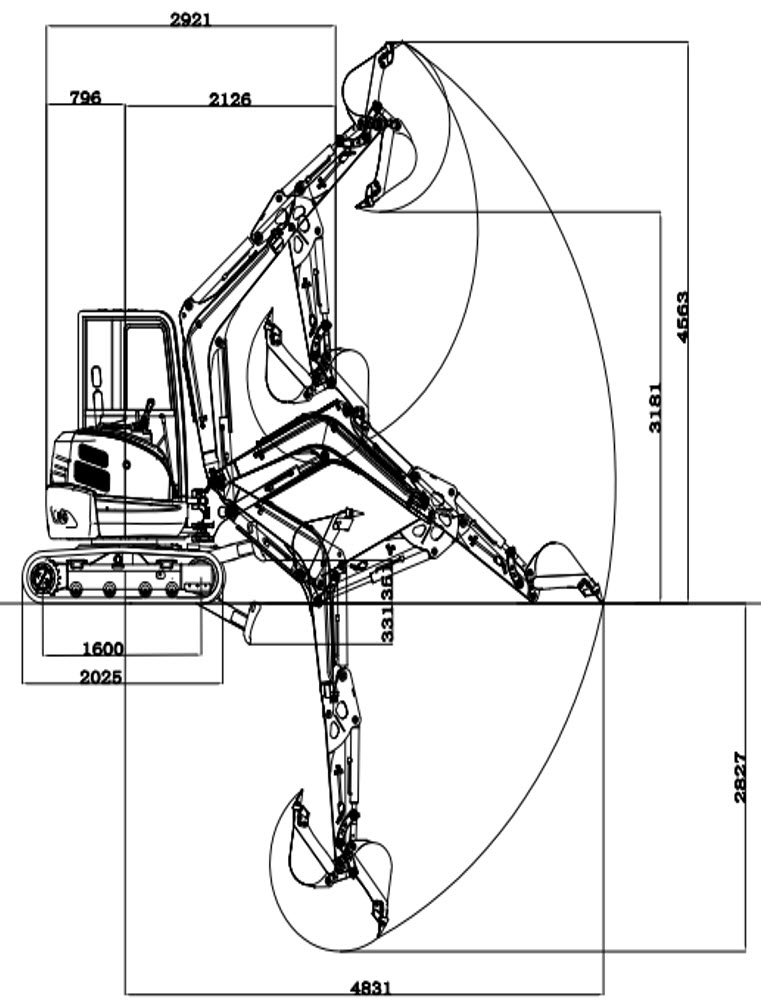

| Performance | |
|---|---|
| Max Bucket digging force kN (kgf/lbf) | 27 (2753/6070) |
| Climbing ability (%) | 30 |
| Maximum digging depth (mm/in) | 2827 / 111 |
| Maximum digging height (mm/in) | 4563 / 179 |
| Maximum unloading height (mm/in) | 3181 / 125 |
| Maximum reach at ground Level (mm/in) | 4831 / 190 |

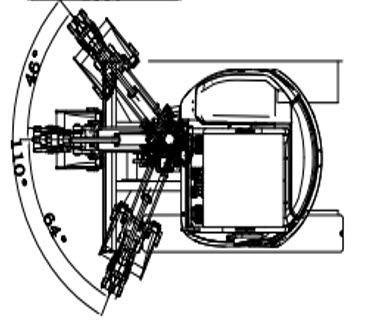

| Boom swing angle degree (Left/Right) | 64/46 |
