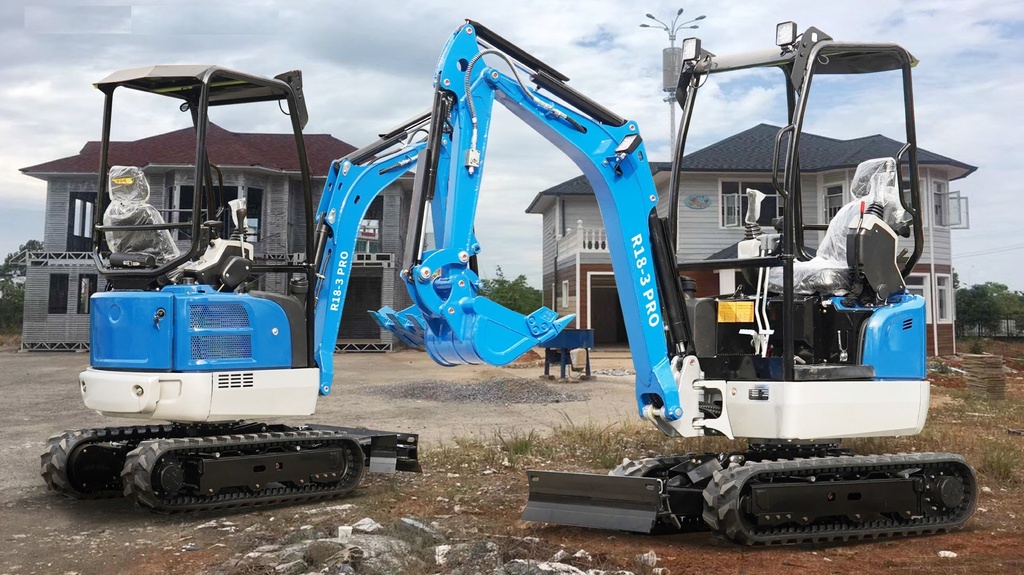

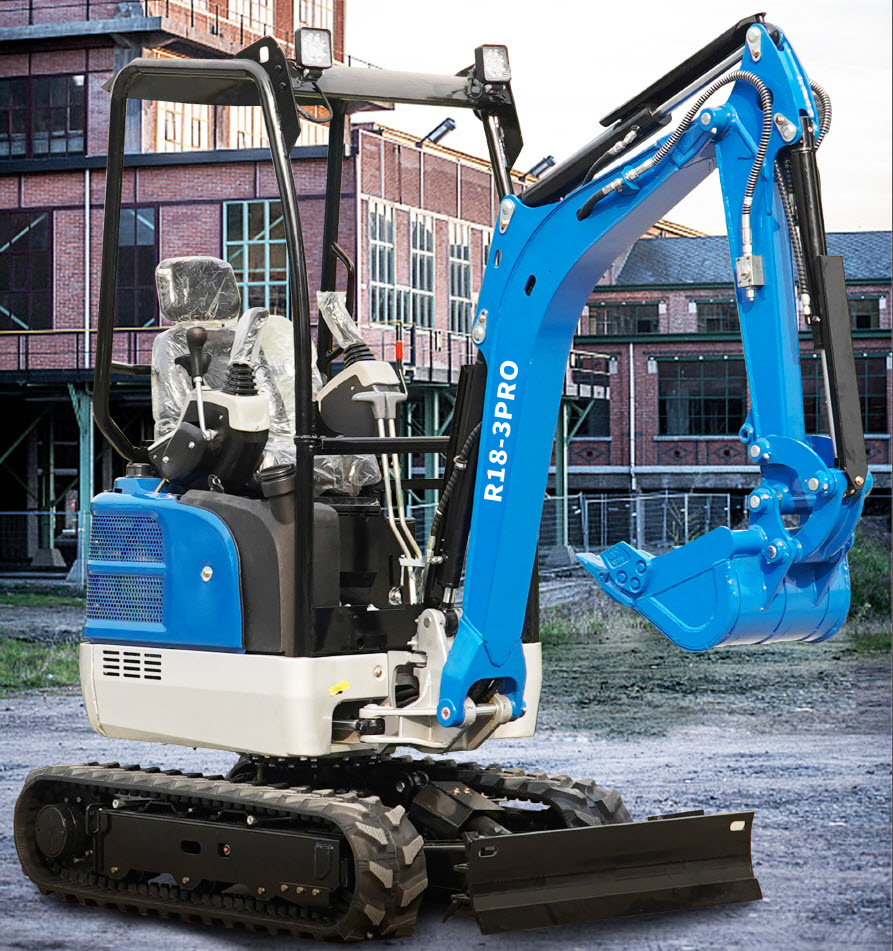

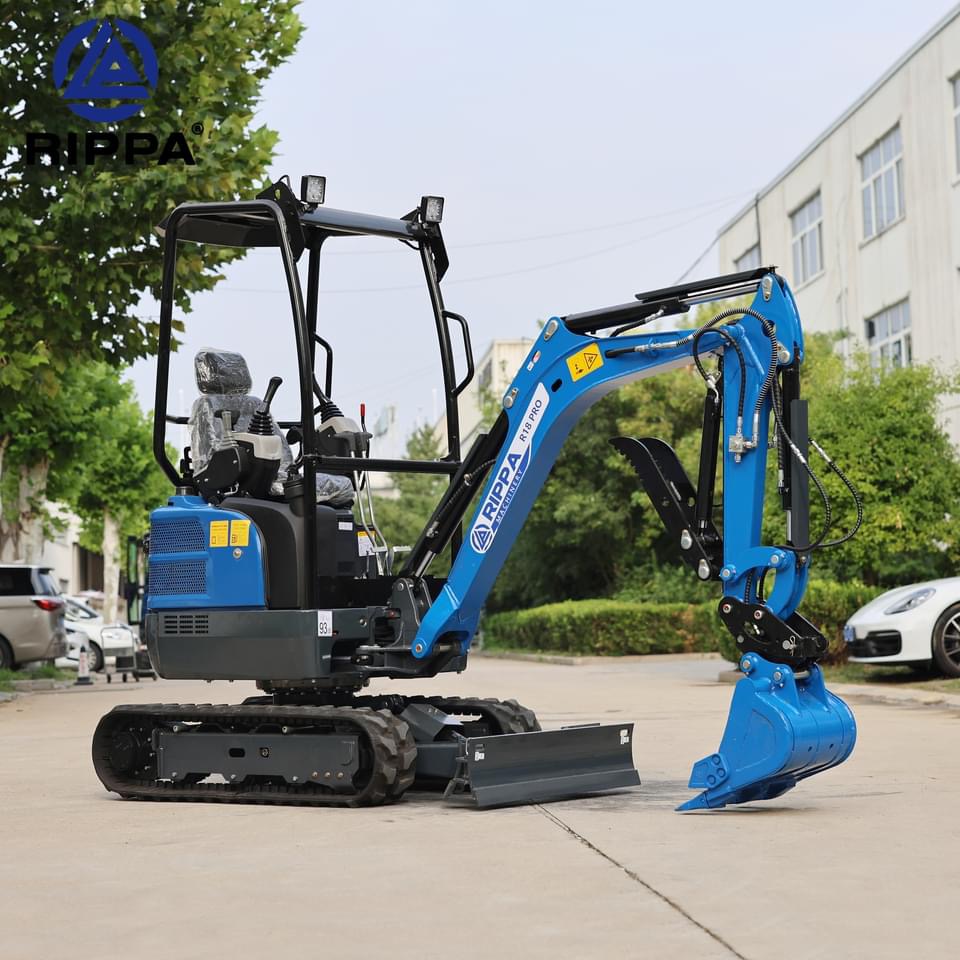

RIPPA R18-3 PRO
RIPPA R18-3 PRO
1.8 tons mini-excavator
Kubota D902 Diesel Engine
Hydraulic Thumb included
Extendable carriage included
Swing Boom included
Top Speed
LKC LTM03 Planetary final drive
Trusted by Leading Brands: The fact that leading brands like Komatsu, Hitachi and Kubota trust the LKC LTM03 for their machinery speaks volumes about its quality and durability. By choosing equipment that uses this final drive, you're aligning with industry standards and ensuring long-term operational success.
Kubota U17/Bobcat E20/Hitachi ZX17U
Yanmar VIO17/Takeuchi TB216/Komatsu PC18

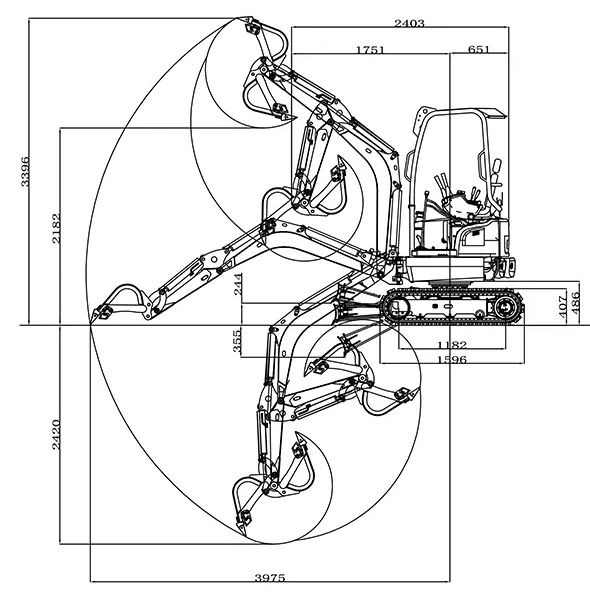

Impressive digging capacity
Maximum digging force of Bucket: 840 kgf / 1852 lbf
Maximum digging force of stick: 1240 kgf / 2734 lbf
Maximum digging radius: 3970mm / 156.3 in
Maximum digging depth: 2420mm / 95.3 in
Maximum digging height: 3396mm / 133.9 in
Maximum unloading height: 2182mm / 85.8 in
KUBOTA Engine
Kubota diesel engine brings powerful performance and excellent working ability with its excellent design. It also has the advantages of low fuel consumption, low vibration and low noise. Kubota provide a 2 years \ 2000 Hours warranty.
Specifications
| Engine | |
|---|---|
| Engine type | Water-Cooled Diesel |
| Engine Manufacturer | Kubota |
| Engine Model | D902 |
| Maximum torque - (Nm (lb-ft) / rpm) | 54.7 (40.3) / 2600 |
| Maximum Rated output - (kW (HP) / rpm) | 18.5 (24.8) / 3600 |
| Main Caracteristics | |
|---|---|
| Track type | Rubber or Steel |
| Operating weight (kg) | 1806 |
| Final Drive type | Hydraulic final drive gearbox |
| Travel speed in high mode (km/h) | 0 - 3 |
| Travel speed in Low mode (km/h) | 0 - 1.8 |
| Locking hydraulic functions | Yes |
| Auxiliary Hydraulics on arm | Standard |
| Auxiliary output - Quick connect | Standard |

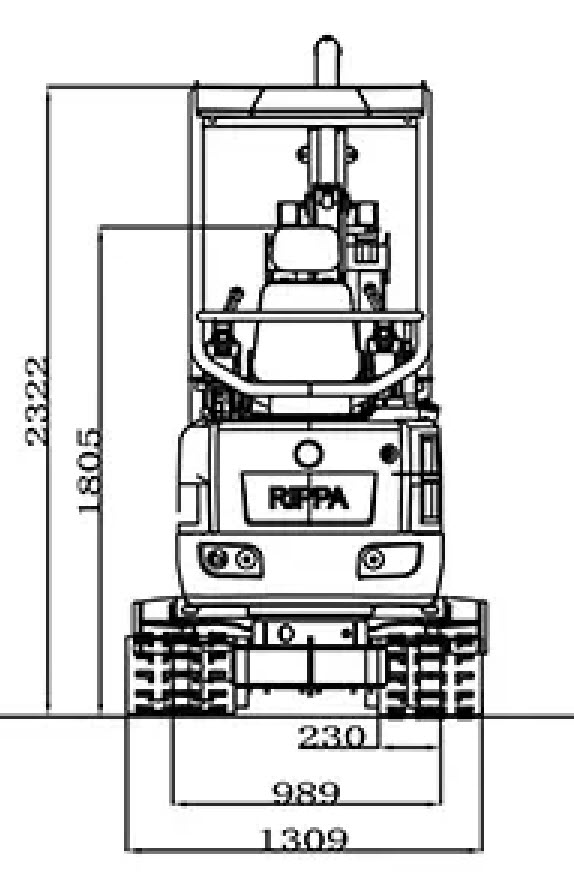

| Dimensions | |
|---|---|
| Overall height (mm/in.) | 2322/91.4 |
| Transportation length (mm/in.) | 2527/99.5 |
| Transportation width (mm/in.) | 989/39 |
| Track width when retracted (mm/in.) | 989/38.9 |
| Track width when extended (mm/in.) | 1309/51.5 |
| Track undercarriage length (mm/in.) | 1596/62.8 |
| Track center sprocket idler distance (mm/in.) | 1182/46.5 |
| Track undercarriage height (mm/in.) | 407/16 |
| Performance | |
|---|---|
| Max Bucket digging force kN (kgf/lbf) | 12.8 (1224/2698 |
| Max Arm digging force kN (kgf/lbf) | 12.1 (1240/2734) |
| Climbing ability (%) | 30 |
| Maximum digging depth (mm/in) | 2420/95.3 |
| Maximum digging height (mm/in) | 3396/133.9 |
| Maximum unloading height (mm/in) | 2182/85.8 |
| Maximum reach at ground Level (mm/in) | 3970/ 156.3 |
