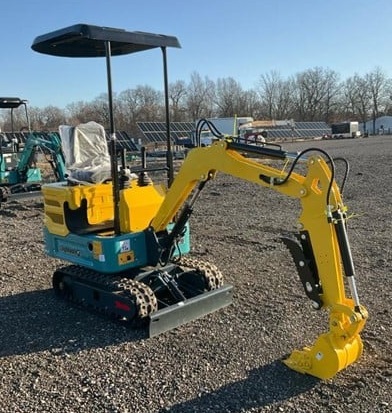

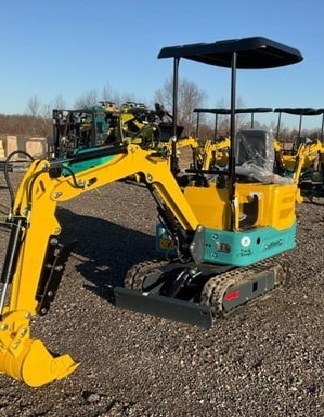

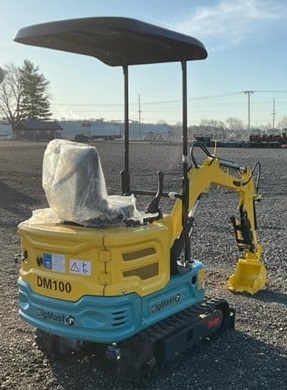

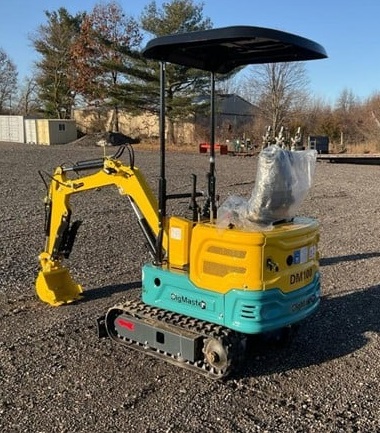

RIPPA DIGMASTER DM100 - Front Control - Gas Engine (Base Model)
DigMaster DM100 excavator
Mechanical controls in front of the operator
External Travel Motor
Briggs and Stratton 13.5HP
This machine has a 11" digging bucket (12" with the side scrapers),
Open ROPS with a canopy,
35" hydraulic blade,
Canopy with 2 supports posts
Include 12 inch teeth buckets
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Engine | |
|---|---|
| Engine type | Air-Cooled Gas |
| Engine Manufacturer | Briggs & Stratton |
| Engine Model | XR1200 |
| Maximum Rated output - (kW (HP) / rpm) | - (13.5) / 2600 |
| Maximum torque - (Nm (lb-ft) / rpm) | - (21)/2600 |
| Configuration | |
|---|---|
| Control type | Mecanicals controls |
| Configuration | Base |
| Hydraulic Oil Cooler | yes |
| Main Caracteristics | |
|---|---|
| Locking hydraulic functions | Yes |
| Operating weight (kg) | 970 |
| Auxiliary Hydraulics on arm | Standard |
| Auxiliary output - Quick connect | Standard |
| Final Drive type | 2-Speed Orbital Hydraulic Motor |
| Travel speed in high mode (km/h) | n/a |
| Travel speed in Low mode (km/h) | 0 - 1.8 |
| Track type | Rubber |
| Track width (mm/in.) | 180/7 |
| Track Tension Type | Bolt and lock nut |
| Dimensions | |
|---|---|
| Overall height (mm/in.) | 2201 / 86.6 |
| Transportation width (mm/in.) | 912/36 |
| Transportation length (mm/in.) | 2430/95.7 |
| Track width when retracted (mm/in.) | 912/36 |
| Track width when extended (mm/in.) | 1212/47.7 |
| Track undercarriage length (mm/in.) | 1090/46.9 |
| Track undercarriage height (mm/in.) | 308/12.1 |
| Track center sprocket idler distance (mm/in.) | 863/34 |
| Performance | |
|---|---|
| Climbing ability (%) | 30 |
| Boom swing angle degree (Left/Right) | 74/47 |
| Max Arm digging force kN (kgf/lbf) | n/a |
| Max Bucket digging force kN (kgf/lbf) | 9.2 (938/2068) |
| Maximum digging depth (mm/in) | 1833/72 |
| Maximum digging height (mm/in) | 3021/119 |
| Maximum unloading height (mm/in) | 2247/88.5 |
| Maximum reach at ground Level (mm/in) | 3233/127.3 |
